Acknowledgements

• The logic of undo and redo features is adapted from AB4.
• The print feature uses third-party library Apache POI.

---

Setting up, getting started

Refer to the guide Setting up and getting started.

---

Design

Architecture

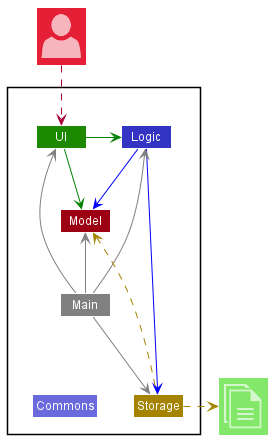

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main has two classes called Main and MainApp. It is responsible for,

• At app launch: Initializes the components in the correct sequence, and connects them up with each other.
• At shut down: Shuts down the components and invokes cleanup methods where necessary.

Commons represents a collection of classes used by multiple other components.

The rest of the App consists of four components.

• UI: The UI of the App.
• Logic: The command executor.
• Model: Holds the data of the App in memory.
• Storage: Reads data from, and writes data to, the hard disk.

How the architecture components interact with each other

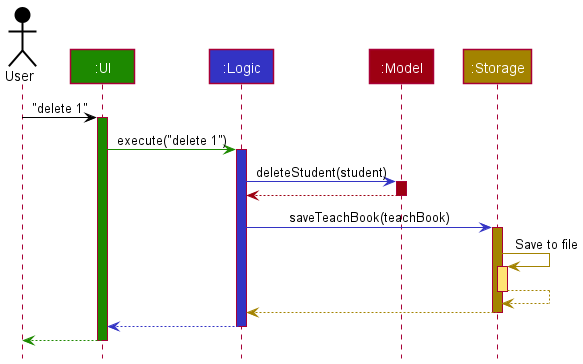

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete 1.

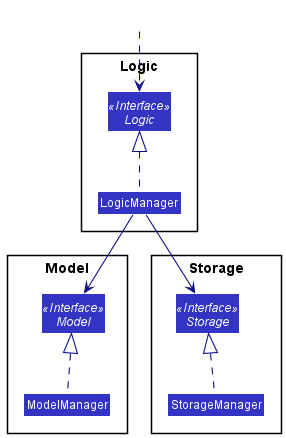

Each of the four main components (also shown in the diagram above),

• defines its API in an interface with the same name as the Component.
• implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component’s being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

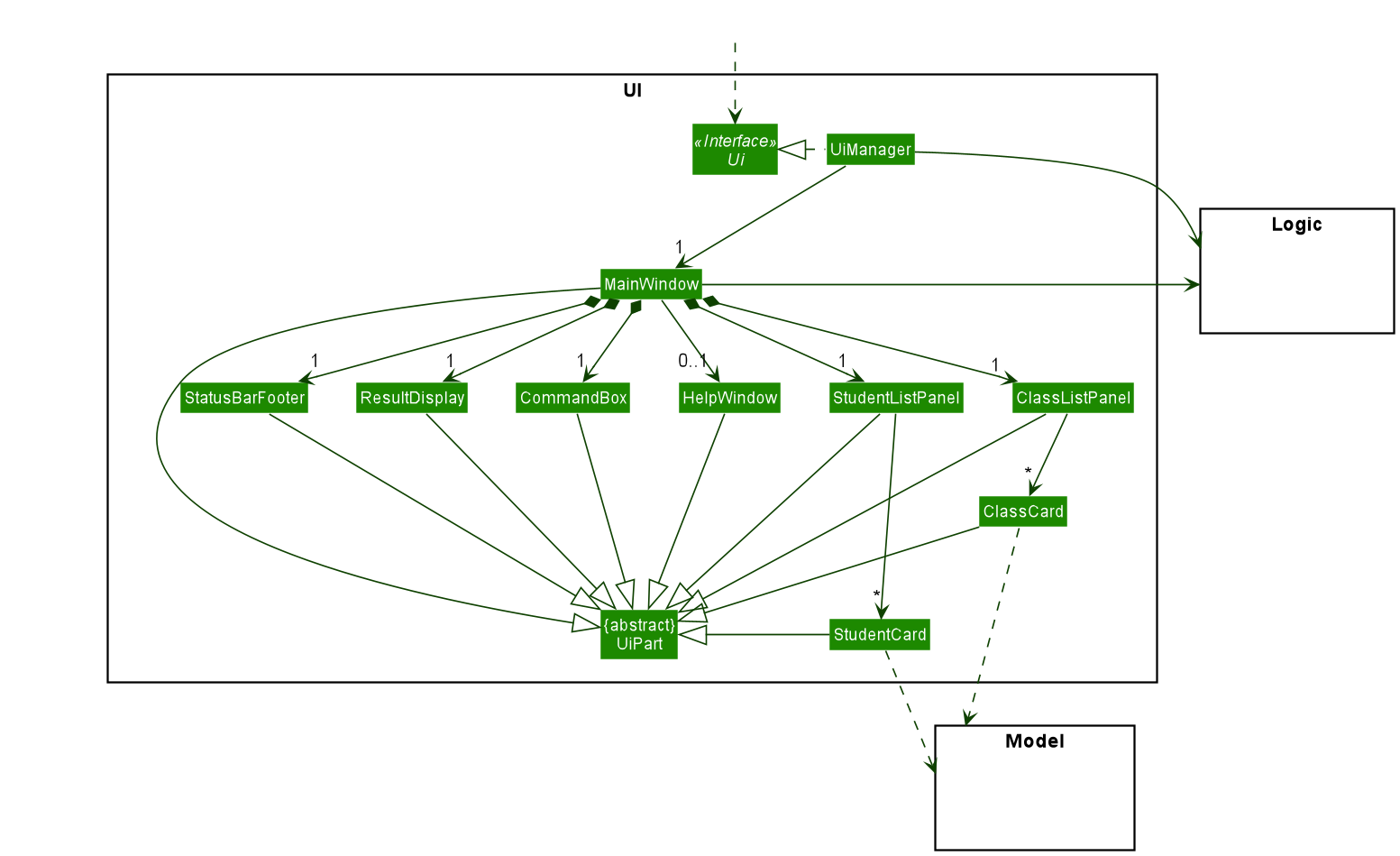

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, StudentListPanel, ClassListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI. The ClassCard will be displayed by the ClassListPanel and the StudentCard will be displayed by the StudentListPanel.

The UI component uses the JavaFX UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

• executes user commands using the Logic component.
• listens for changes to Model data so that the UI can be updated with the modified data.
• keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
• depends on some classes in the Model component, as it displays Student and Class object residing in the Model.

Logic component

API : Logic.java

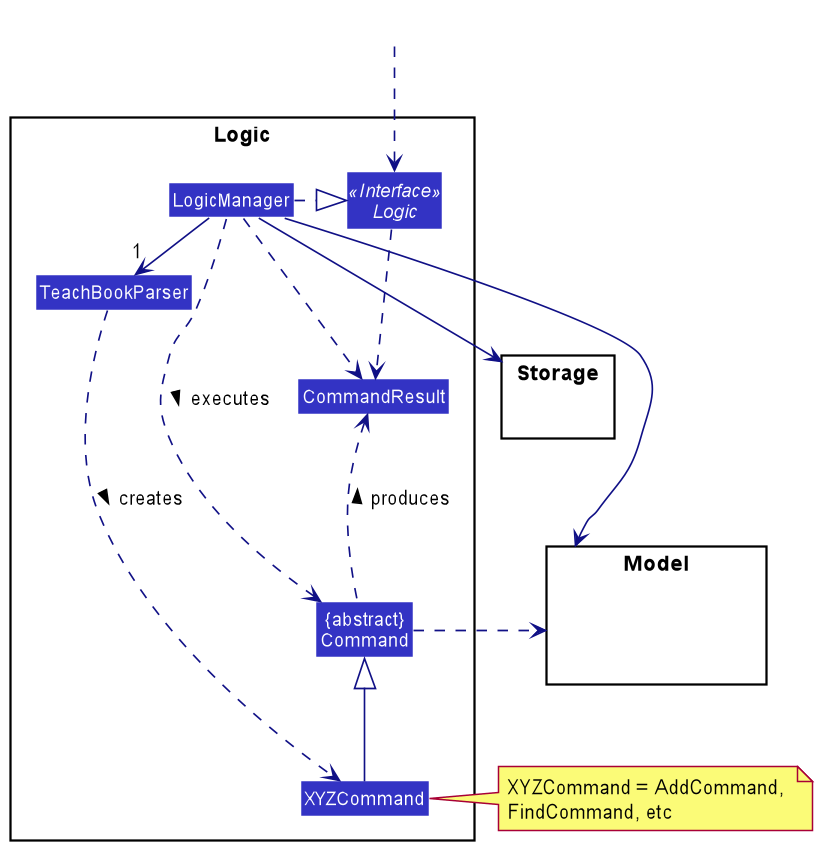

Here’s a (partial) class diagram of the Logic component:

How the Logic component works:

1. When Logic is called upon to execute a command, it uses the TeachBookParser class to parse the user command.
2. This results in a Command object (more precisely, an object of one of its subclasses e.g., AddCommand) which is executed by the LogicManager.
3. The command can communicate with the Model when it is executed (e.g. to add a student).
4. The result of the command execution is encapsulated as a CommandResult object which is returned from Logic.

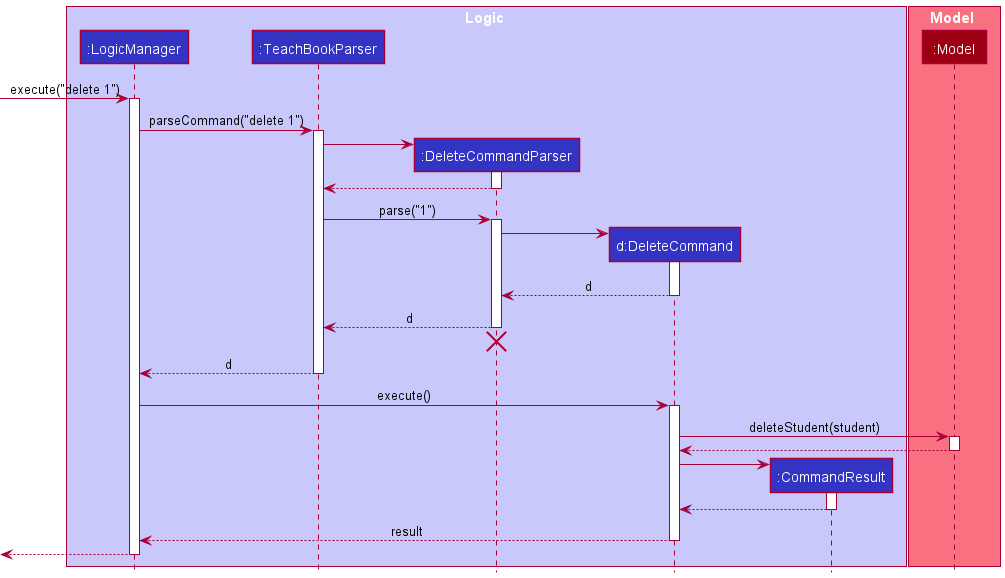

The Sequence Diagram below illustrates the interactions within the Logic component for the execute("delete 1") API call.

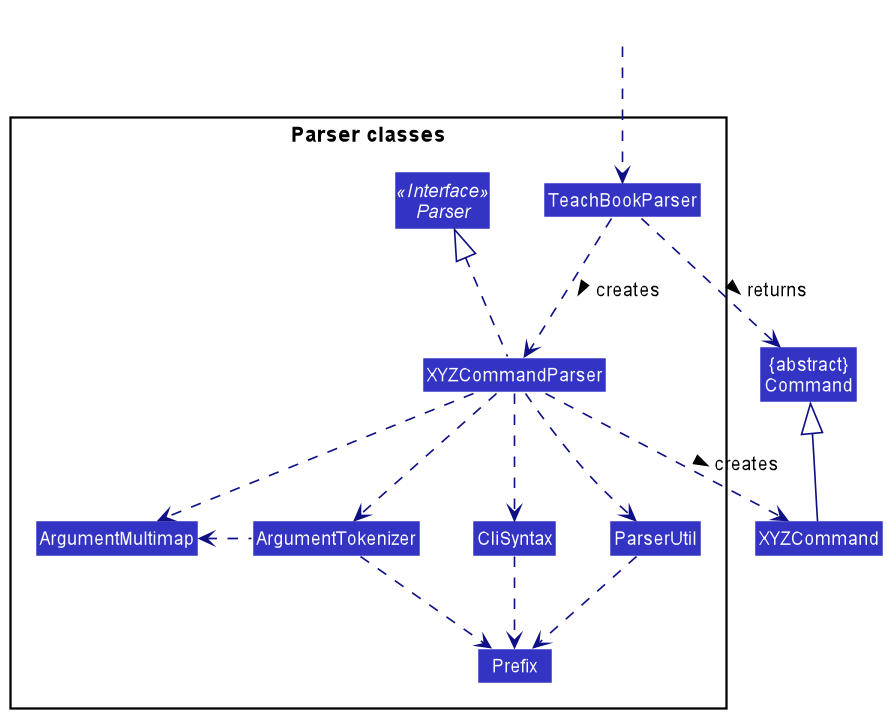

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

How the parsing works:

• When called upon to parse a user command, the TeachBookParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddCommand) which the TeachBookParser returns back as a Command object.
• All XYZCommandParser classes (e.g., AddCommandParser, DeleteCommandParser, …) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

Model component

API : Model.java

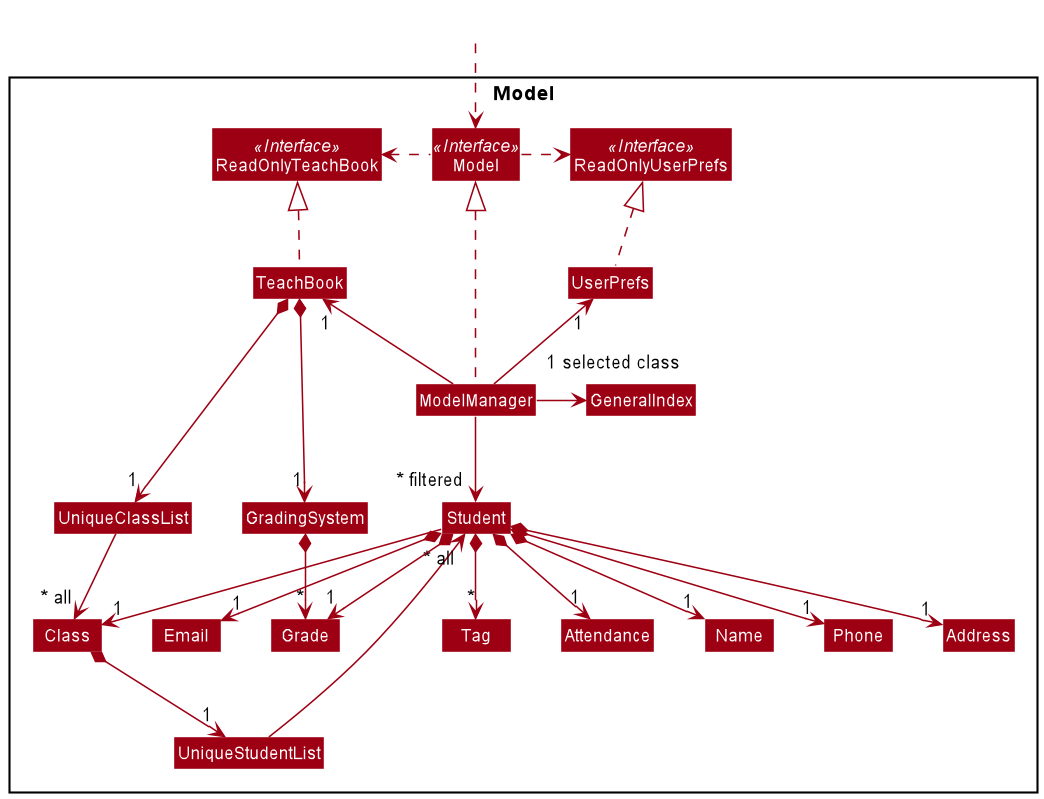

The Model component,

• stores TeachBook data i.e., all Student objects (which are contained in a UniqueStudentList object).
• stores the currently ‘selected’ Student objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Student> that can be ‘observed’ e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
• stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
• does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components).

Storage component

API : Storage.java

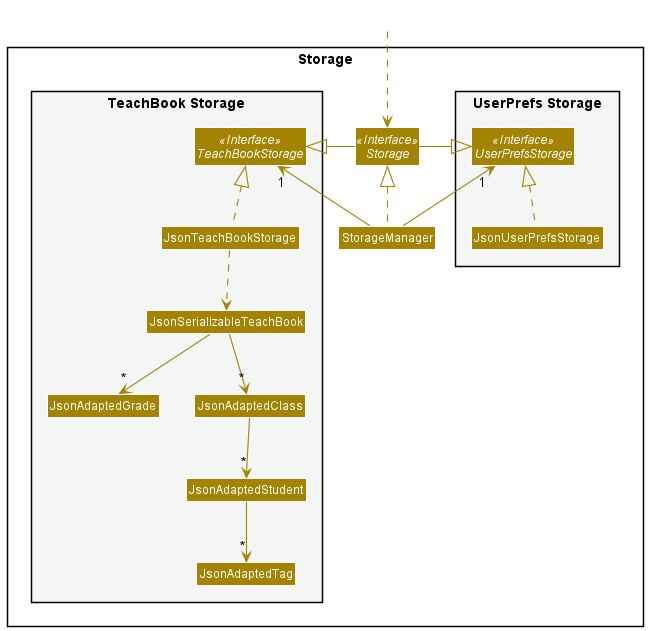

The Storage component,

• can save both TeachBook data and user preference data in json format, and read them back into corresponding objects.
• inherits from both TeachBookStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of one is needed).
• depends on some classes in the Model component (because the Storage component’s job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the seedu.teachbook.commons package.

---

Implementation

This section describes some noteworthy details on how certain features are implemented.

Integration of class feature

Design considerations

Aspect: Structure of the new model component

To integrate the new class feature into the existing AB3 product, we decided that each student object should have a reference to its class, and there should only be one class object for the same class. We considered and compared a few designs of the rest of the model component:

• Alternative 1 (current choice): TeachBook maintains a list of all the classes. Each class maintains a list of all the students in that class. A unique student list containing all the students in all the classes is generated every time when users execute the list all command.
  • Pros
    • When adding/deleting students, we only need to add/delete ONCE using a class’s student list at most times.
    • The filtered student list inside ModelManager can take the student list of the currently selected class as its source directly.
  • Cons
    • When list all, we need to construct the unique student list by iterating through each class’s student list, which can degrade the performance of the list all command.
• Alternative 2: TeachBook maintains a list of all the classes. Each class maintains a list of all the students in that class. TeachBook also maintains a unique student list containing all the students in all the classes.
  • Pros
    • The filtered student list inside ModelManager can still take the student list of the currently selected class as its source directly.
    • When list all, the filtered student list can also take the maintained unique student list as its source directly.
  • Cons
    • When adding/deleting students, we always need to add/delete TWICE. This means we need to modify both a class’s student list and the unique student list.
    • If we simply add/delete students of the unique student list without maintaining a specific order of all the students, the list can look messy when list all. We may still need to do a sorting by class when list all, which actually also degrades the performance of list all.
• Alternative 3: TeachBook only maintains a unique student list containing all the students in all the classes.
  • Pros
    • Easiest to implement and most components can be reused from AB3.
    • When adding/deleting students, we only need to add/delete ONCE using the unique student list.
  • Cons
    • Similar to Alternative 2, there is still the need to maintain the order of students in the unique student list.
    • We always need a predicate to screen out students of the currently selected class. Since users may interact with a specific class at most times, this can degrade the performance of most commands.

Synchronization of Student List in Model and UI

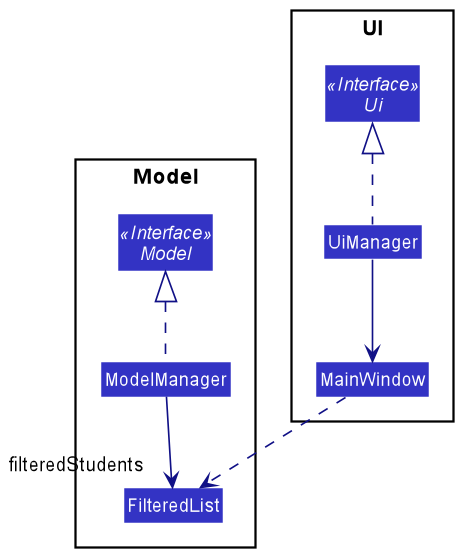

To ensure synchronization throughout the program, ModelManager maintains a filteredStudents observable, which is observed by MainWindow. filteredStudents contains the list of students to be displayed in the UI.

SelectCommand and ListCommand with the all option i.e., list all are the only two commands that will modify the filteredStudents entirely, i.e., a new observable is created and replaces the existing observable, via ModelManager#updateSourceOfFilteredStudentList(). However, this change is not observed by MainWindow as MainWindow only observes changes within the observable, i.e., the previous filteredStudents observable, and not the changes to the filteredStudents variable itself, which contains the observable. To mitigate this issue, the updateStudentListPanel flag, in the commandResult returned after the execution of both SelectCommand and ListCommand with the all option, is set to true. The flag then triggers the MainWindow to retrieve the new filteredStudents observable via the MainWindow#updateStudentListPannel() and start observing changes in the new observable. Thereafter, the student list in the UI is again in sync with the student list in the Model.

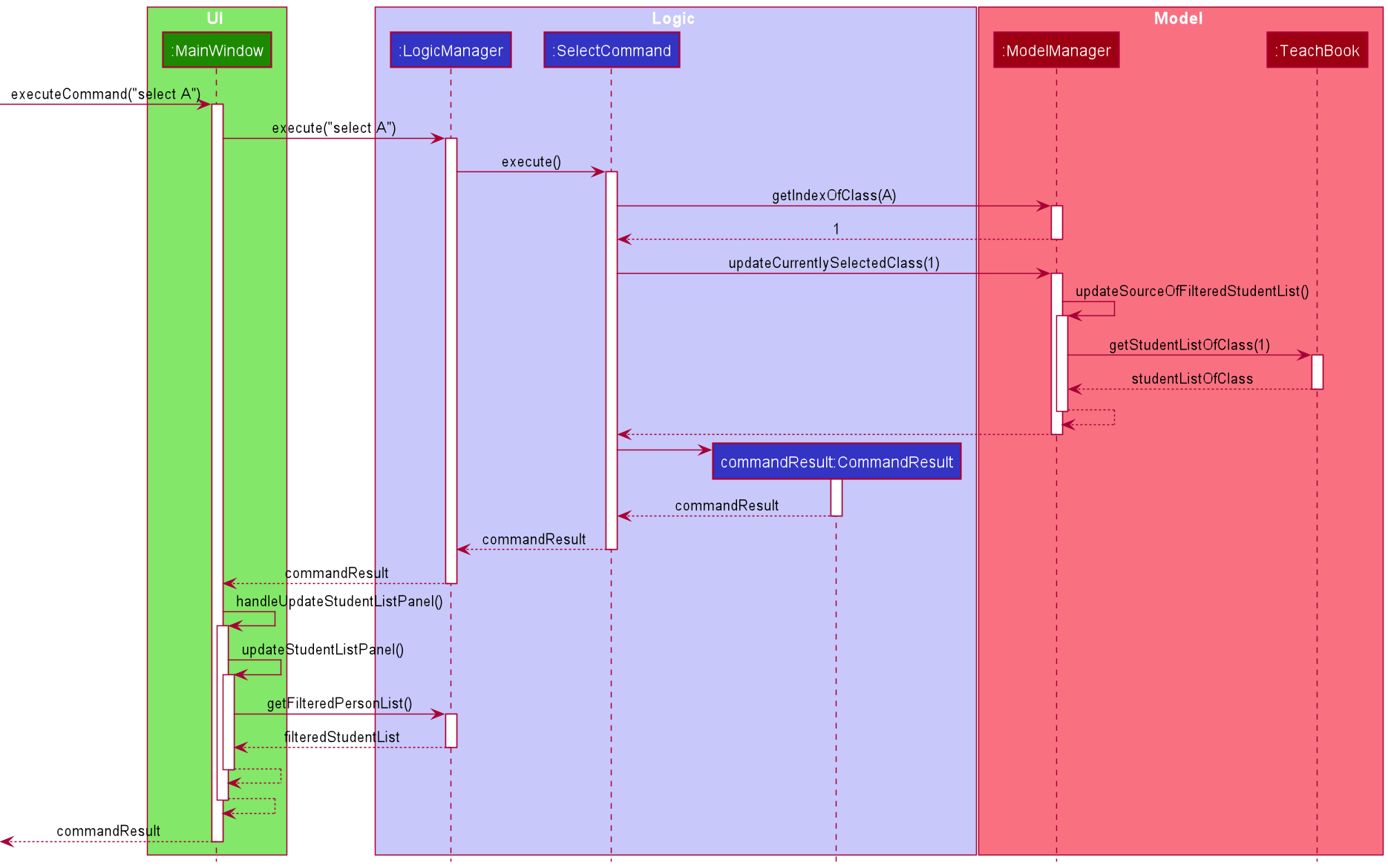

Below is the sequence diagram of the execution of the SelectCommand.

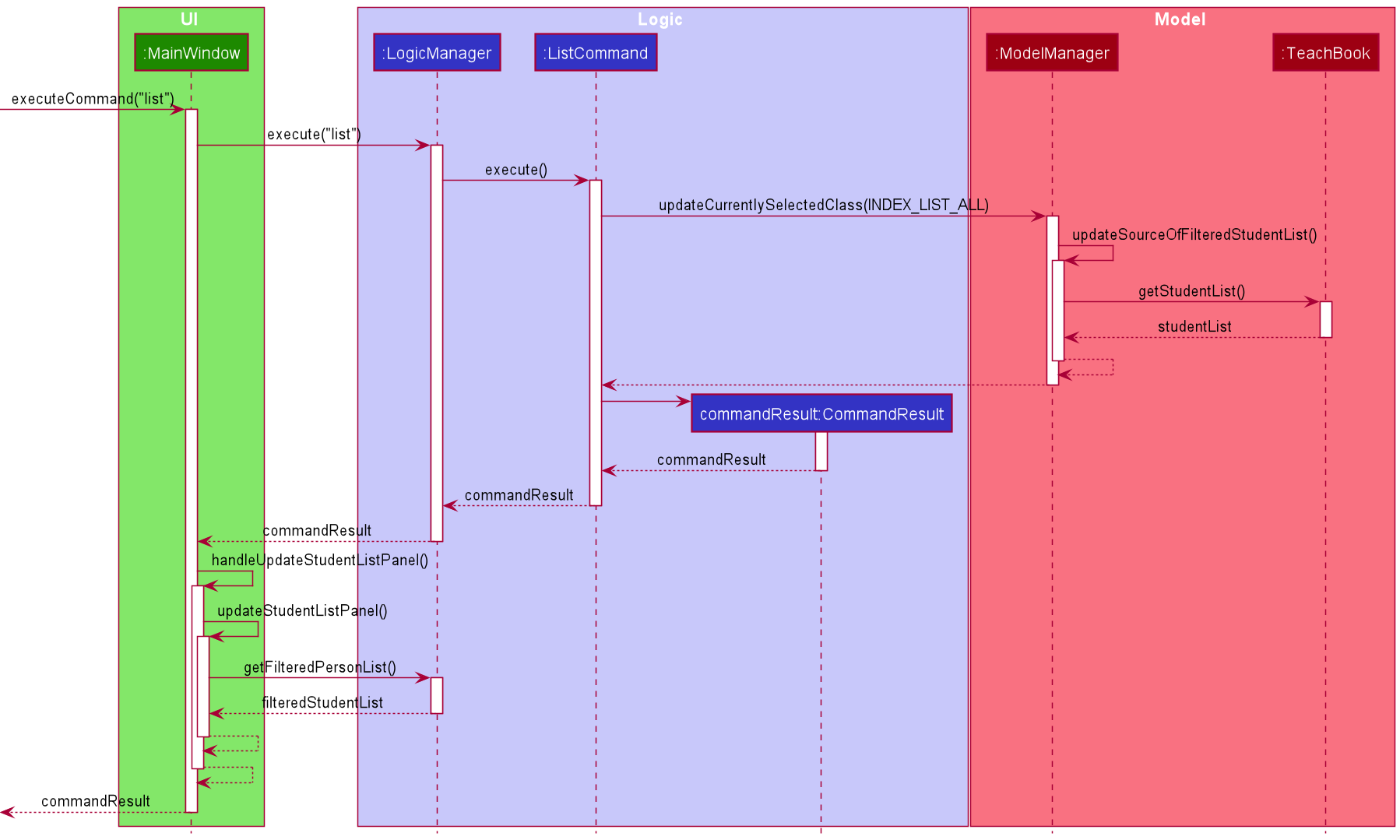

Below is the sequence diagram of the execution of the ListCommand with the all option.

Delete class feature

Implementation

The delete class feature allows users to delete a class and all the students in the class from the TeachBook. This feature is facilitated by DeleteClassCommand and DeleteClassCommandParser.

Given below is an example usage scenario and how the delete class mechanism behaves.

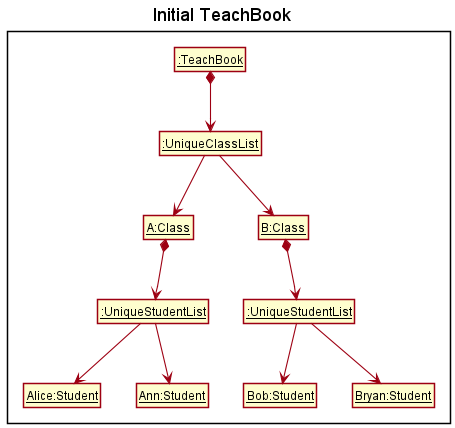

The following object diagram shows an example initial state of the TeachBook:

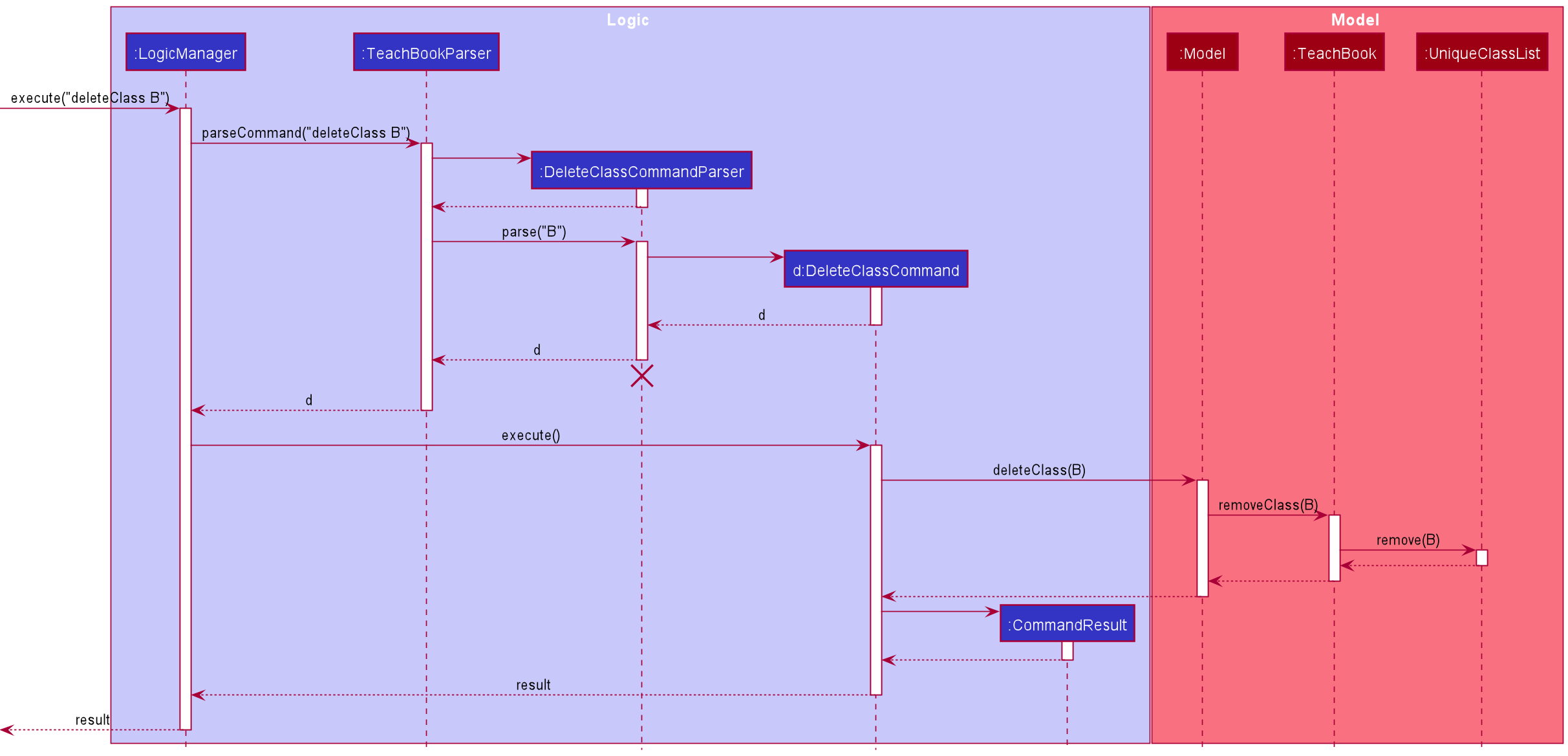

The following sequence diagram shows interactions within the Logic component and part of the Model component for the deleteClass B command:

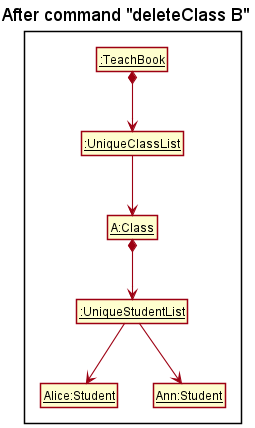

The following object diagram shows the updated TeachBook:

Edit feature

TeachBook allows users to edit students’ details after initially adding the students. However, a student’s class cannot be modified.

Implementation details

The edit command is implemented using EditCommand and EditCommandParser, along with TeachBookParser and LogicManager which creates the required objects. Cases where the user enters an invalid input is handled with exceptions along with corresponding error feedback to the user.

The edit command has the following format: edit INDEX [n/NAME] [p/PHONE_NUMBER] [e/EMAIL] [a/ADDRESS] [t/TAG]...

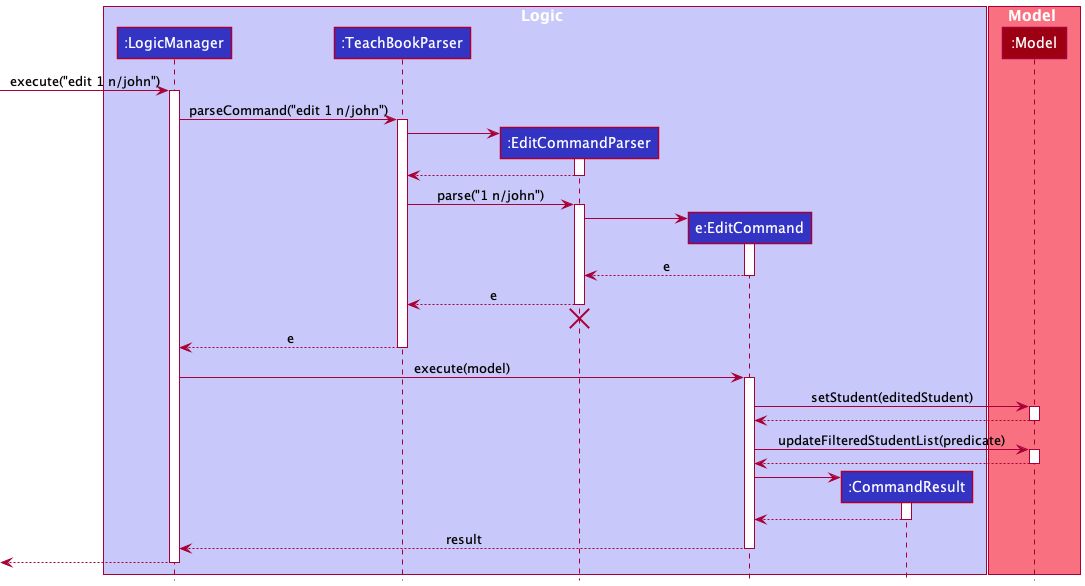

Given below is the sequence diagram on how EditCommand behaves in TeachBook when the user tries to edit the student’s name at index 1 of the current class to john:

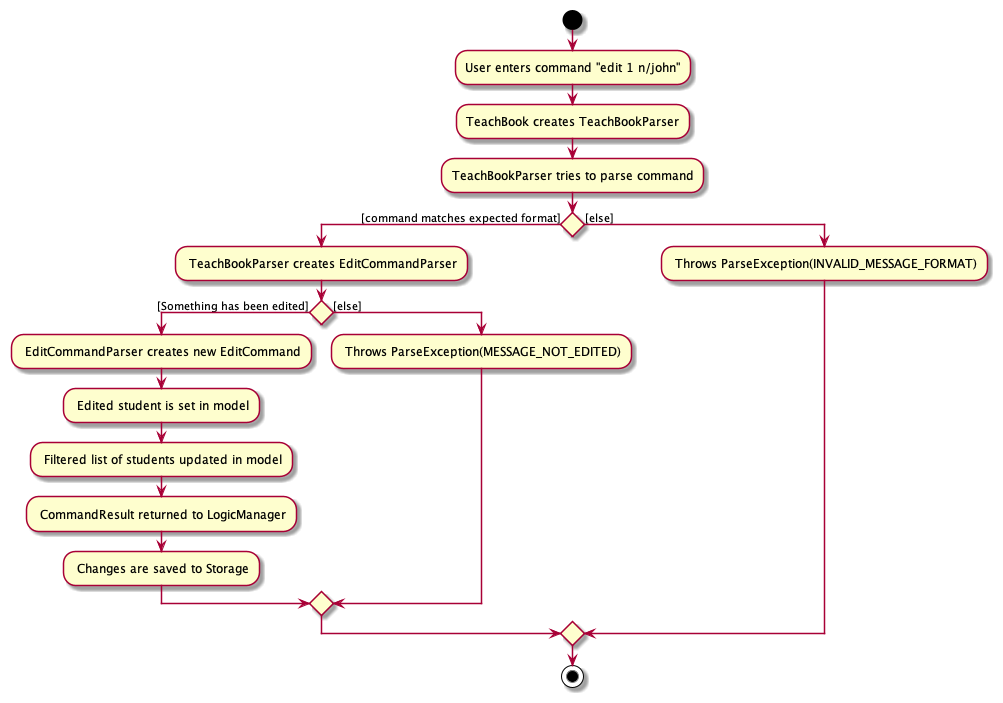

Given below is the activity diagram for the same scenario above:

Filtering

Filtering is an essential feature to have when it comes to an application that stores data. This is because with filtering, users can access information with ease in the shortest time possible.

With reference to the discussion on Synchronization of Student List in Model and UI earlier, at any point of time, filteredStudents will contain either the list of all the students from the currently selected class or the list of all the students from all the classes. By making filteredStudents a FilteredList<Student>, filtering can be done easily to both the list of all the students from a class and the list of all the students from all the classes by just passing in the corresponding Predicate<Student>. For example, FindCommand and ListCommand with the absent option filter the filteredStudents via ModelManager#updateFilteredStudentList() by passing in the NameContainsKeywordsPredicate and StudentIsAbsentPredicate respectively. To “clear” the filter on the other hand, there is the ListCommand which utilizes the ModelManager#updateFilteredStudentList() as well but passing in PREDICATE_SHOW_ALL_STUDENTS instead. Note that because filtering is done on the filteredStudent observable, the changes will be observed by the MainWindow and the result of filtering will be reflected immediately in the UI.

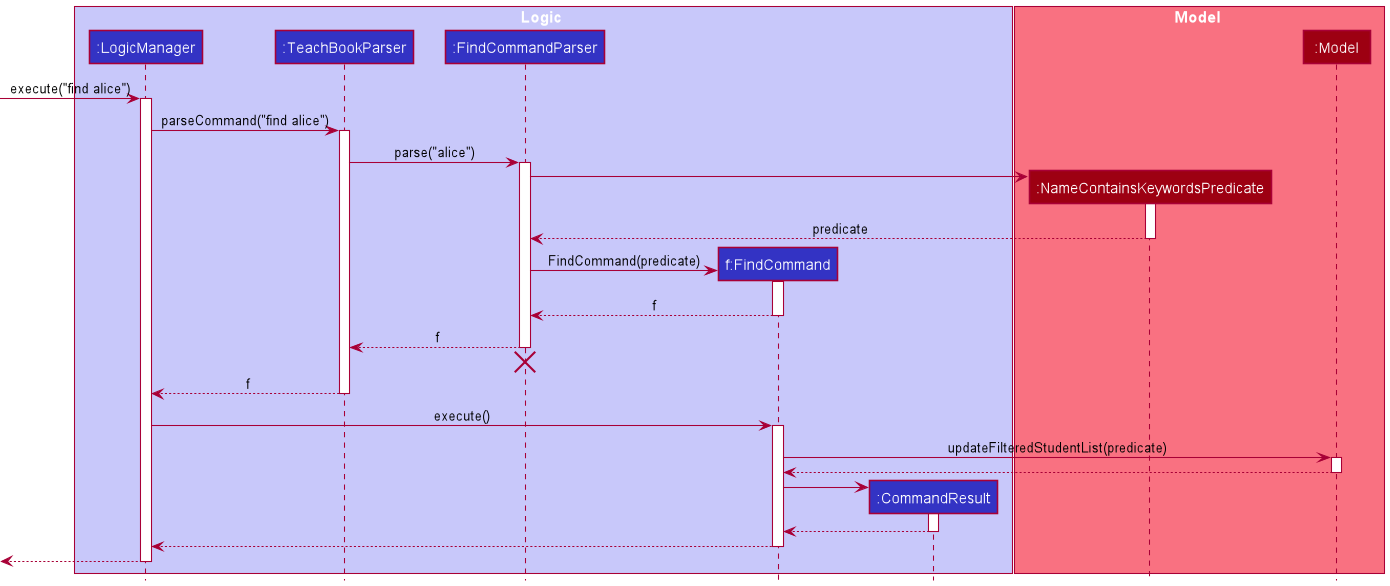

Below is the sequence diagram of the execution of the FindCommand.

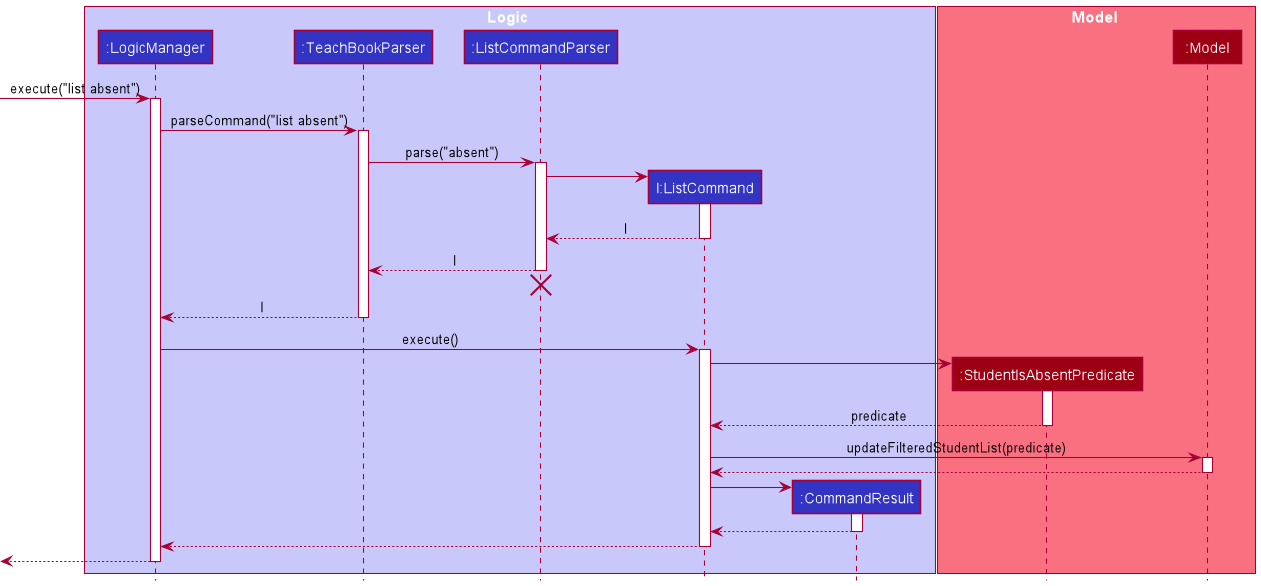

Below is the sequence diagram of the execution of the ListCommand with the absent option.

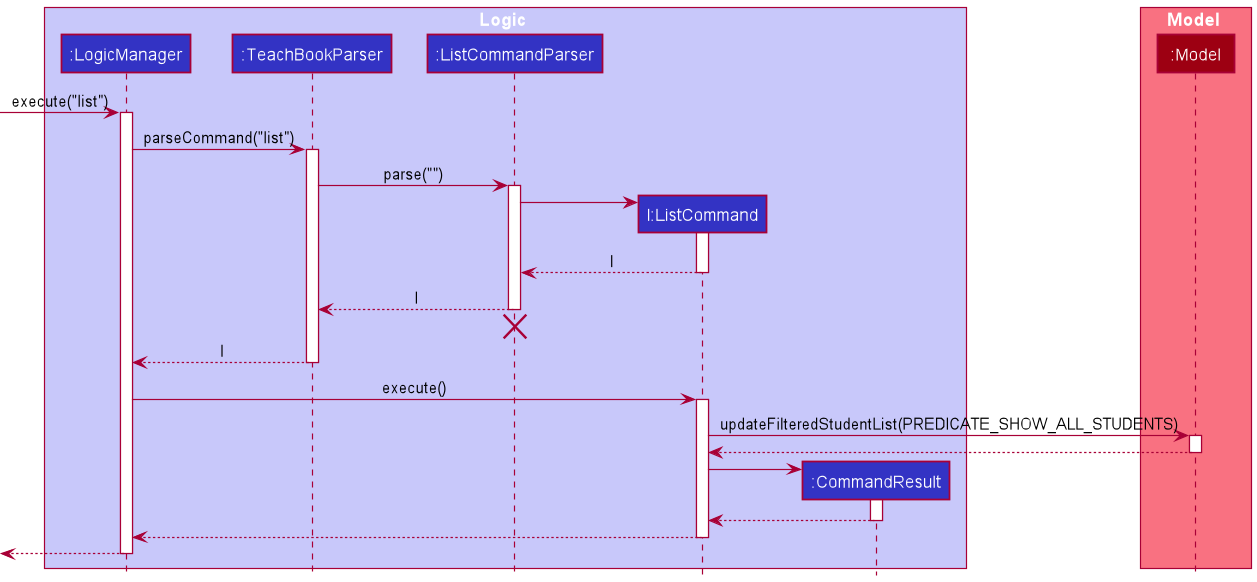

Below is the sequence diagram of the execution of the ListCommand.

Add class feature

TeachBook allows users to add classes.

Implementation details

The addClass command is implemented using multiple classes. Firstly, when the user input addClass A, the LogicManager will invoke the parseCommand of TeachBookParser to create a addClassCommandParse object. The parse method in the AddClassCommandParser will be called to parse the inputs. It will create a class object named A and then return a addClassCommand object. The returned addClassCommand then runs the execute() method which will in turn invoke the chain of addClass(), addClass(), add() and add() command by the model, TeachBook, UniqueClassList and ObservableList classes respectively.

The addClass command has the following format: addClass CLASS_NAME

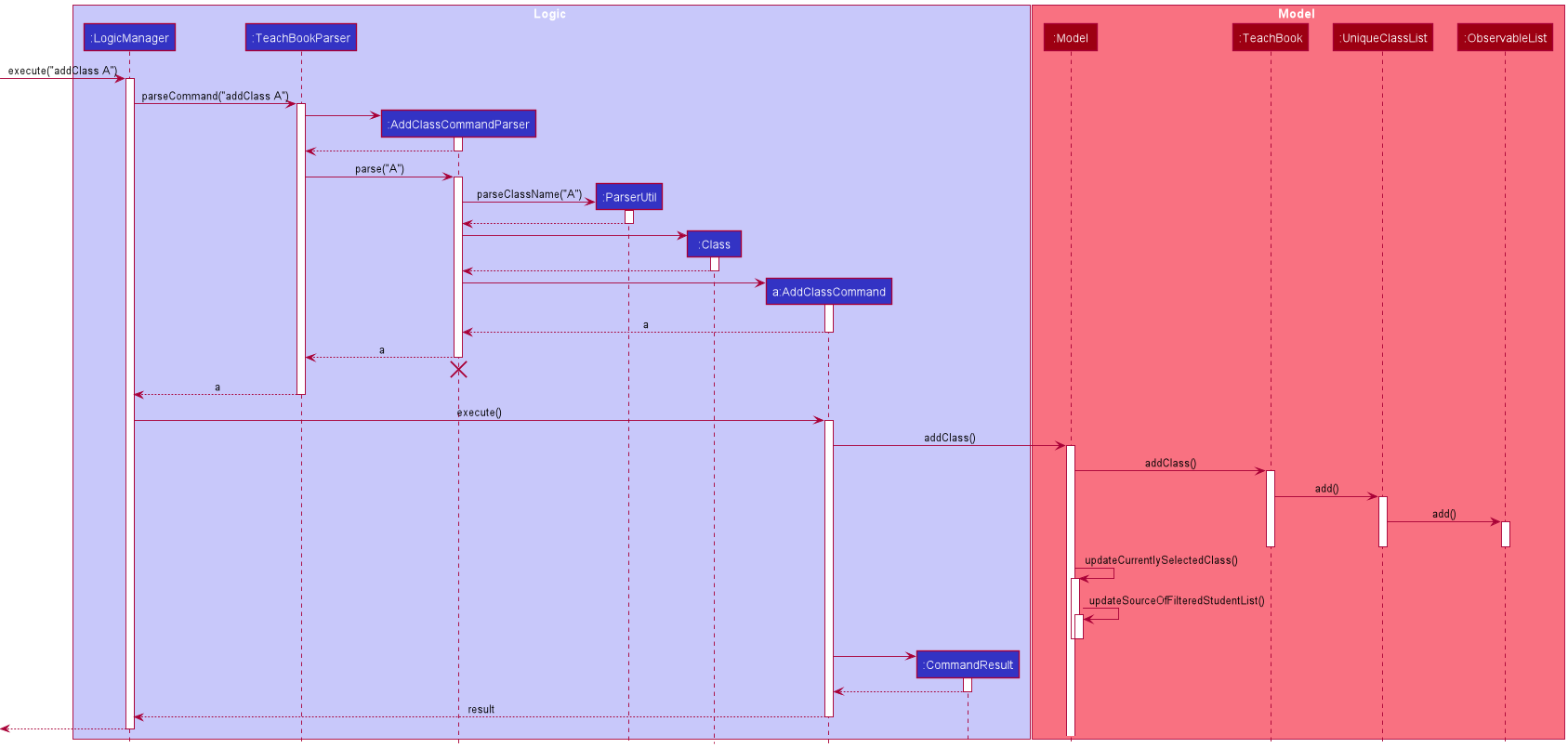

Given below is the sequence diagram on how addClass Command behaves in TeachBook when the user tries to add a class named A.

Undo/redo feature

Implementation

The undo/redo mechanism is facilitated by VersionedTeachBook. It extends TeachBook with an undo/redo history, each state is stored internally as an TeachbookDataState which consist of a TeachBook and TeachbookDisplayState. TeachbookDisplayState stored the filter predicate for the student list if any is applied and also the index of the selected class to be displayed. The TeachbookDataState is stored in a TeachbookStateList with a currentStatePointer. Additionally, it implements the following operations:

• VersionedTeachBook#commit() — Saves the current TeachBook state in its history.
• VersionedTeachBook#undo() — Restores the previous TeachBook state from its history.
• VersionedTeachBook#redo() — Restores a previously undone TeachBook state from its history.

These operations are exposed in the Model interface as Model#commitTeachBook(), Model#undoTeachBook() and Model#redoTeachBook() respectively.

Model#undoTeachBook() and Model#redoTeachBook() will return display settings to update the model accordingly.

Given below is an example usage scenario and how the undo/redo mechanism behaves at each step.

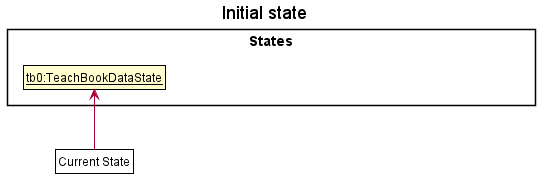

Step 1. The user launches the application for the first time. The VersionedTeachBook will be initialized with the initial TeachbookDataState, and the currentStatePointer pointing to that single TeachBook state.

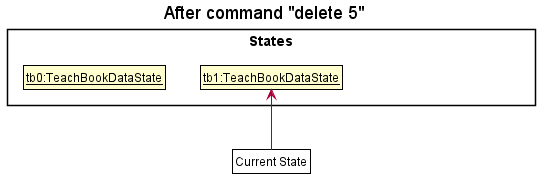

Step 2. The user executes delete 5 command to delete the 5th student in the Teachbook. The delete command calls Model#commitTeachBook(), causing the modified TeachbookDatastate after the delete 5 command executes to be saved in the teachBookStateList, and the currentStatePointer is shifted to the newly inserted TeachBook state.

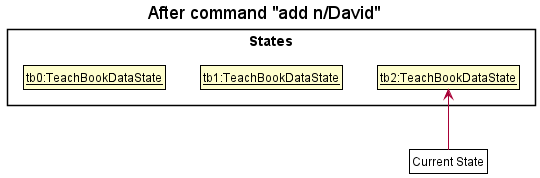

Step 3. The user executes add n/David ... to add a new student. The add command also calls Model#commitTeachBook(), causing another modified TeachbookDatastate to be saved into the teachBookStateList.

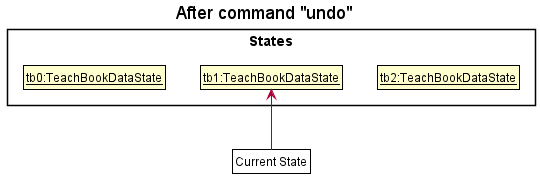

Step 4. The user now decides that adding the student was a mistake, and decides to undo that action by executing the undo command. The undo command will call Model#undoTeachBook(), which will shift the currentStatePointer once to the left, pointing it to the previous TeachBook state, and restores the Teachbook to that state.

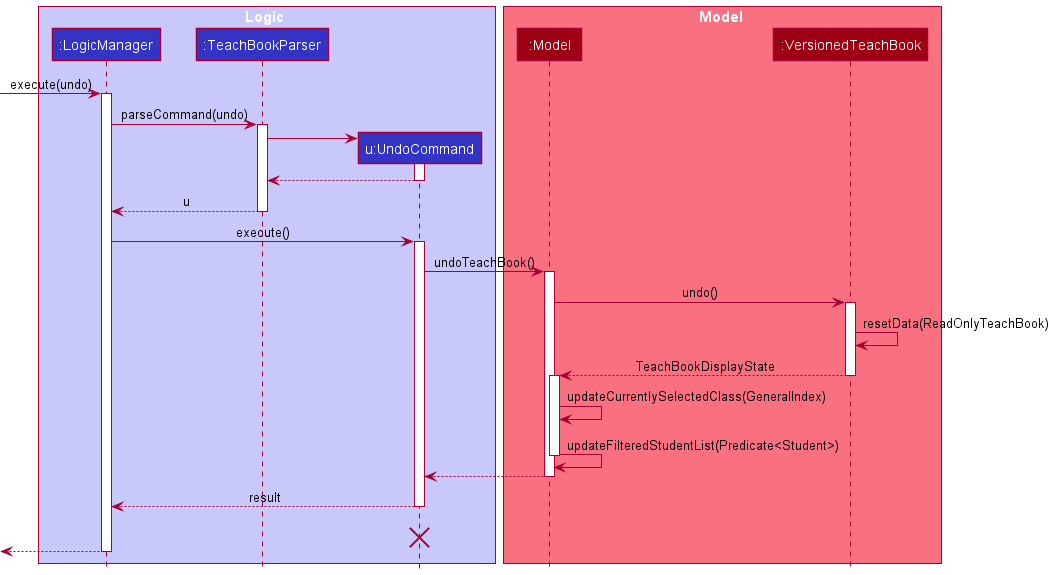

The following sequence diagram shows how the undo operation works:

The redo command does the opposite — it calls Model#redoTeachBook(), which shifts the currentStatePointer once to the right, pointing to the previously undone state, and restores the TeachBook to that state.

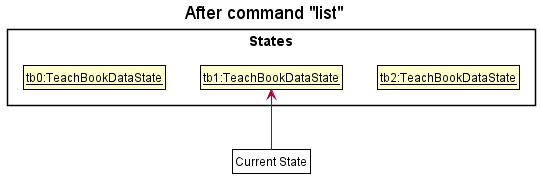

Step 5. The user then decides to execute the command list. Commands that do not modify the TeachBook, such as list, will usually not call Model#commitTeachBook(), Model#undoTeachBook() or Model#redoTeachBook(). Thus, the teachBookStateList remains unchanged.

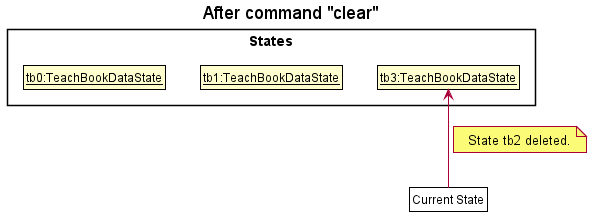

Step 6. The user executes clear, which calls Model#commitTeachBook(). Since the currentStatePointer is not pointing at the end of the teachBookStateList, all TeachBook states after the currentStatePointer will be purged. Reason: It no longer makes sense to redo the add n/David ... command. This is the behavior that most modern desktop applications follow.

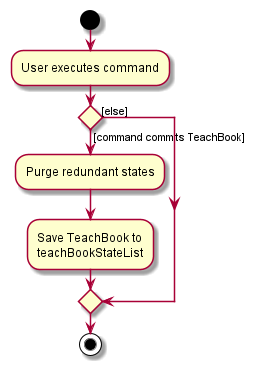

The following activity diagram summarizes what happens when a user executes a new command:

Design considerations

Aspect: How undo & redo executes:

• Alternative 1 (choice): Saves the entire TeachBook.
  • Pros: Easy to implement.
  • Cons: May have performance issues in terms of memory usage.
• Alternative 2: Individual command knows how to undo/redo by itself.
  • Pros: Will use less memory (e.g. for delete, just save the student being deleted).
  • Cons: We must ensure that the implementation of each individual command are correct.

---

Documentation, logging, testing, configuration, dev-ops

• Documentation guide
• Testing guide
• Logging guide
• Configuration guide
• DevOps guide

---

Appendix: Requirements

Product scope

Target user profile:

• is a primary or secondary school teacher
• has a need to manage multiple class worth of students’ contacts that she is teaching
• prefers desktop apps over other types
• is not proficient in IT but can type fast
• prefers typing to mouse interactions
• is reasonably comfortable using CLI apps
• wants to keep her personal contacts and students’ contacts separate
• wants to better take care of her students by storing some special notes (e.g. allergy condition) of her students somewhere
• wants to have an app to help with administrative work in teaching (e.g. taking attendance, keying in grades of students)

Value proposition: Manages contacts faster than a typical mouse/GUI driven app. Allows teachers to have a dedicated app to keep their work life separated from their personal life. Allows teachers to find students and their emergency information accurately and easily. Assists teachers with their day to day administrative work such as marking of attendance and grading.

User stories

Priorities: High (must have) - * * * , Medium (nice to have) - * * , Low (unlikely to have) - *

Priority	As a …	I want to …	So that I can …
* * *	new user	get instructions	refer to instructions when I forget how to use the TeachBook
* * *	teacher	add the students I teach	keep track of my students’ contact
* * *	teacher	remove students from my contacts	remove specific students who are no longer take my classes
* * *	teacher	search for my students in my contacts by name	get a student’s information easily
* * *	teacher	view my student’s information	contact them easily
* * *	teacher	separate my students by classes	better sort my contacts & not mix up students with similar names but from different classes
* *	teacher	modify contacts	change information easily rather than creating a new contact to replace the previous one
* *	teacher with students whom require special attention	add important information about my students such as diet, allergies or health conditions	quickly react to any emergency related to these information
* *	teacher	set a special grading system	customize my grading system just in case it changes in the future
* *	teacher	reset the grading system	remove any outdated grading system
* *	teacher	easily store the grades of my students	remember how well each student is doing in my classes
* *	teacher	sort my students by grade	quickly find out groups of students which require more help
* *	teacher	delete a class with its data all at once	quickly remove the class I have stopped teaching
* *	teacher	clear the TeachBook data all at once	get a fresh TeachBook at the start of the year
* *	teacher	filter my students using keywords	quickly list out specific students
* *	teacher	undo the most recent command	revert any mistakes I make quickly
* *	teacher	redo the most recent undo	redo any accidental undos
* *	teacher	view the number of students in each class	prepare sufficient material for each class
* *	teacher	mark attendance for my students	remember if they attended my classes
* *	teacher	mark attendance for all my students	quickly mark attendance if all the students are present
* *	teacher	mark students as absent	correct any attendance mistakes
* *	teacher	mark all the students as absent	start marking attendance at the start of the day
*	teacher	modify class names	edit the class name in case of mistakes
*	teacher	set special tags for my students	tag my students with extra information
*	teacher	print out a list of students only containing names	do any administrative work that requires a hard copy document
*	teacher	print out a list of students with extra information related to the students	do not have to manually input all the information
*	teacher	view the list of all the students	have an overview of all my students
*	teacher	add all the students from a class at once	quickly add the information of the students in each class
*	teacher	archive my TeachBook data	start over with a clean slate and can retrieve records I need in the future
*	teacher	able to load a different TeachBook data to my TeachBook	easily transfer any data from one device to another

Use cases

(For all use cases below, the System is the TeachBook and the Actor is the user, unless specified otherwise)

Use case: UC01 - Add class

MSS:

1. User requests to add a class.

2. TeachBook adds the class.

   Use case ends.

Extensions:

• 1a. Class name is not provided.

  • 1a1. TeachBook shows an error message.

    Use case ends.

• 1b. The given class name is invalid.

  • 1b1. TeachBook shows an error message.

    Use case ends.

• 1c. There is an existing class with the given class name.

  • 1c1. TeachBook shows an error message.

    Use case ends.

Use case: UC02 - Delete class

MSS:

1. User requests to delete a class.

2. TeachBook deletes the class.

   Use case ends.

Extensions:

• 1a. Class name is not provided.

  • 1a1. TeachBook shows an error message.

    Use case ends.

• 1b. The specified class does not exist.

  • 1b1. TeachBook shows an error message.

    Use case ends.

Use case: UC03 - Edit class name

MSS:

1. User requests to edit the name of the currently selected class.

2. TeachBook edits the class name.

   Use case ends.

Extensions:

• 1a. There is no currently selected class.

  • 1a1. TeachBook shows an error message.

    Use case ends.

• 1b. No new class name is provided.

  • 1b1. TeachBook shows an error message.

    Use case ends.

• 1c. The given new class name is invalid.

  • 1c1. TeachBook shows an error message.

    Use case ends.

• 1d. There is an existing class with the given new class name.

  • 1d1. TeachBook shows an error message.

    Use case ends.

Use case: UC04 - Select a class

MSS:

1. User requests to select a class.

2. TeachBook selects the class.

   Use case ends.

Extensions:

• 1a. The specified class does not exist.

  • 1a1. TeachBook shows an error message.

    Use case ends.

• 1b. The specified class is already selected.

  • 1b1. TeachBook shows an error message.

    Use case ends.

Use case: UC05 - Add student

MSS:

1. User requests to add a student to the currently selected class.

2. TeachBook adds the student.

   Use case ends.

Extensions:

• 1a. There is no currently selected class.

  • 1a1. TeachBook shows an error message.

    Use case ends.

• 1b. Student name is not provided.

  • 1b1. TeachBook shows an error message.

    Use case ends.

• 1c. There is an existing student with the same name in the class.

  • 1c1. TeachBook shows an error message.

    Use case ends.

• 1d. Any given student information is invalid.

  • 1d1. TeachBook shows an error message.

    Use case ends.

Use case: UC06 - Delete one or more students

MSS:

1. User requests to delete one or more specific students.

2. TeachBook deletes the students.

   Use case ends.

Extensions:

• 1a. One or more specified students do not exist.

  • 1a1. TeachBook shows an error message.

    Use case ends.

Use case: UC07 - Delete all the students in the filtered student list

MSS:

1. User requests to delete all the students in the filtered student list.

2. TeachBook deletes the students.

   Use case ends.

Extensions:

• 1a. The filtered student list is empty.

  • 1a1. TeachBook shows an error message.

    Use case ends.

Use case: UC08 - Edit student

MSS:

1. User requests to edit a student.

2. TeachBook edits the student.

   Use case ends.

Extensions:

• 1a. The specified student does not exist.

  • 1a1. TeachBook shows an error message.

    Use case ends.

• 1b. No fields are provided.

  • 1b1. TeachBook shows an error message.

    Use case ends.

• 1c. There is an existing student with the given new student name.

  • 1c1. TeachBook shows an error message.

    Use case ends.

• 1d. Any given student information is invalid.

  • 1d1. TeachBook shows an error message.

    Use case ends.

Use case: UC09 - Give remark to a student

MSS:

1. User requests to give a remark to a student.

2. TeachBook overwrites any existing remark of the student with the given remark.

   Use case ends.

Extensions:

• 1a. The specified student does not exist.

  • 1a1. TeachBook shows an error message.

    Use case ends.

• 1b. The given remark is empty.

  • 1b1. TeachBook clears any existing remark of the student.

    Use case ends.

Use case: UC10 - Find students by name keywords

MSS:

1. User requests to find students by name keywords.

2. TeachBook shows a list of students whose name contains at least one of the keywords.

   Use case ends.

Use case: UC11 - View all the students from the currently selected class

Preconditions: There is a currently selected class.

MSS:

1. User requests to view all the students from the currently selected class.

2. TeachBook shows all the students in the class.

   Use case ends.

Use case: UC12 - View all the students from a class

MSS:

1. User selects a class (UC04).

2. User views all the students from the currently selected class (UC11).

   Use case ends.

Use case: UC13 - View students from all the classes

MSS:

1. User requests to view students from all the classes.

2. TeachBook shows students from all the classes.

   Use case ends.

Use case: UC14 - View all absent students from the current student list

MSS:

1. User requests to view absent students from the class.

2. TeachBook shows a list of absent students from the class.

   Use case ends.

Use case: UC15 - View absent students from a class

MSS:

1. User selects a class (UC04).

2. User views all absent students from the current student list (UC14).

   Use case ends.

Use case: UC16 - View absent students from all the classes

MSS:

1. User views students from all the classes (UC13).

2. User views all absent students from the current student list (UC14).

   Use case ends.

Use case: UC17 - Mark one or more students as present

MSS:

1. User requests to mark one or more students as present.

2. TeachBook marks the students as present.

   Use case ends.

Extensions:

• 1a. One or more specified students do not exist.

  • 1a1. TeachBook shows an error message.

    Use case ends.

Use case: UC18 - Mark all the students in the filtered student list as present

MSS:

1. User requests to mark all the students in the filtered student list as present.

2. TeachBook marks the students as present.

   Use case ends.

Extensions:

• 1a. The filtered student list is empty.

  • 1a1. TeachBook shows an error message.

    Use case ends.

Use case: UC19 - Mark one or more students as absent

MSS:

1. User requests to mark one or more students as absent.

2. TeachBook marks the students as absent.

   Use case ends.

Extensions:

• 1a. One or more specified students do not exist.

  • 1a1. TeachBook shows an error message.

    Use case ends.

Use case: UC20 - Mark all the students in the filtered student list as absent

MSS:

1. User requests to mark all the students in the filtered student list as absent.

2. TeachBook marks the students as absent.

   Use case ends.

Extensions:

• 1a. The filtered student list is empty.

  • 1a1. TeachBook shows an error message.

    Use case ends.

Use case: UC21 - Set a grading system

MSS:

1. User requests to set a grading system.

2. TeachBook sets the grading system.

   Use case ends.

Extensions:

• 1a. A grading system is currently in use in TeachBook.

  • 1a1. TeachBook shows an error message.

    Use case ends.

Use case: UC22 - Reset grading system

MSS:

1. User requests to reset the existing grading system.
2. TeachBook resets the grading system.

Extensions:

• 1a. There is no grading system in use in TeachBook.

  • 1a1. TeachBook shows an error message.

    Use case ends.

Use case: UC23 - Give grade to one or more students

MSS:

1. User requests to give a grade to one or more students.
2. TeachBook gives the specified grade to the students.

Extensions:

• 1a. There is no grading system in use in TeachBook.

  • 1a1. TeachBook shows an error message.

    Use case ends.

• 1b. The specified grade is invalid.

  • 1b1. TeachBook shows an error message.

    Use case ends.

• 1c. One or more specified students do not exist.

  • 1c1. TeachBook shows an error message.

    Use case ends.

Use case: UC24 - Give grade to all the students in the filtered student list

MSS:

1. User requests to give a grade to all the students in the filtered student list.
2. TeachBook gives the specified grade to the students.

Extensions:

• 1a. There is no grading system in use in TeachBook.

  • 1a1. TeachBook shows an error message.

    Use case ends.

• 1b. The specified grade is invalid.

  • 1b1. TeachBook shows an error message.

    Use case ends.

• 1c. The filtered student list is empty.

  • 1c1. TeachBook shows an error message.

    Use case ends.

Use case: UC25 - Sort students according to grade

MSS:

1. User requests to sort the students according to their grade.

2. TeachBook sorts the students according to their grade.

   Use case ends.

Extensions:

• 1a. There is no grading system in use in TeachBook.

  • 1a1. TeachBook shows an error message.

    Use case ends.

Use case: UC26 - Sort students according to name

MSS:

1. User requests to sort the students according to their name.
2. TeachBook sorts the students according to their name.

Use case: UC27 - Generate an Excel sheet containing information of students in the filtered student list

MSS:

1. User requests to generate an Excel sheet containing information of students in the filtered student list.

2. TeachBook generates the Excel sheet and stored the file in the downloads folder of user’s device.

   Use case ends.

Extensions:

• 1a. User does not have Excel installed on the device.

  • 1a1. TeachBook shows an error message.

    Use case ends.

• 1b. User does not have a downloads folder on the device.

  • 1b1. TeachBook shows an error message.

    Use case ends.

• 1c. The app does not have permission to write to the downloads folder.

  • 1c1. TeachBook shows an error message.

    Use case ends.

Use case: UC28 - Undo a command

MSS:

1. User requests to undo a recent command.

2. TeachBook shows the exact state before the command that is being undone was executed.

   Use case ends.

Extensions:

• 1a. There is no commands to undo.

  • 1a1. TeachBook shows an error message.

    Use case ends.

Use case: UC29 - Redo a command

MSS:

1. User requests to redo a recently undone command.

2. TeachBook shows the exact state before the previous undo command was executed.

   Use case ends.

Extensions:

• 1a. There is no commands to redo.

  • 1a1. TeachBook shows an error message.

    Use case ends.

Use case: UC30 - Clear

MSS:

1. User requests to clear all the data inside TeachBook.

2. TeachBook clears all the data.

   Use case ends.

Use case: UC31 - Help

MSS:

1. User requests for a guide.

2. TeachBook shows a link to the TeachBook User Guide.

   Use case ends.

Use case: UC32 - Exit

MSS:

1. User requests to exit TeachBook.

2. TeachBook exits.

   Use case ends.

Non-Functional Requirements

1. The app should work on any mainstream OS as long as it has Java 11 or above installed.
2. The app should be able to hold up to 30 classes and 200 students in each class without long time lags in performance (being able to respond to any command within 4 seconds) for typical usage.
3. A new user should be able to understand and use all the commands within two days with the help of the User Guide.
4. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
5. User data of an app should be kept only on the device installed the app.
6. User data should not be lost or corrupted when the app is closed unexpectedly.

Glossary

• Class list panel: The panel on the UI that displays the list of classes in TeachBook to the user
• CLI: Command Lind Interface
• Current student list A list containing either all the students from the currently selected class if there is a currently selected class, or all the students from all the classes if there is no currently selected class.
• Currently selected class: The class that is currently being highlighted on the class list panel. Some commands will act on the currently selected class such as addStudent
• Filtered student list: The list of students that is currently being displayed on the student list panel
• Grading system: A particular scale that schools use for evaluating the performance of students in exams (e.g. A, B, C, E and F)
• GUI: Graphical User Interface
• Mainstream OS: Windows, Linux, Unix, OS-X
• Student list panel: The panel on the UI that displays a list of students to the user

---

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

Adding a student

1. Adding a student in a class.

   1. Prerequisites: A class must already be selected. You can know which class is being selected by looking at which class is being highlighted. If none is being selected, you can use the select command or if there is no class in the class list, you can add a new class using the addClass command.
   2. Test case: add n/John p/91234567 e/john@example.com a/21 Lower Kent Ridge Road, Singapore 119077 t/class monitor
      Expected: A student named John with phone number 91234567, email John@gmail.com, address 21 Lower Kent Ridge Road, Singapore 119077 and tag class monitor will be added.
   3. Test case: add n/Janice
      Expected: A student named Janice without other information will be added as additional information are optional.
   4. Test case: add n/Janice
      where janice already exist in the student list. Expected: Error details are shown in the status message that the student already exists in the class.
   5. Test case: add p/91234567
      Expected: Error details are shown in the status message that command format is invalid because information on student’s name is compulsory.
   6. Test case: add
      Expected: Similar to previous.

Editing a student

1. Editing a student from list of students.

   1. Prerequisites: List students in the currently selected class using list command or list all the students in TeachBook using list all command.
   2. Test case: edit 1 n/Jane p/1234
      Expected: First student in the list is being edited. Name of the student is changed to Jane and phone number of the student is changed to 1234
   3. Test case: edit 1
      Expected: No student is edited. Error details shown in the status message that at least one field has to be specified for edit.
   4. Other incorrect edit commands to try: edit, edit nothing edit /nJane /p1234
      Expected: Similar to previous test case.

Giving remark to a student

1. Giving remark to a student while all the students are being shown.

   1. Prerequisites: List all the students using the list command. There are two and only two students in the student list.
   2. Test case: remark 1 r/Allergic to seafood.
      Expected: First student in the list has the remark Allergic to seafood..
   3. Test case: remark 1 r/
      Expected: First student has no remark.
   4. Test case: remark 30 r/
      Expected: No student’s remark field is changed. Error details shown in the status message.
   5. Other incorrect remark commands to try: remark, remark 1, remark r/, remark 0 r/new, remark 1 2 r/new, remark hello r/new
      Expected: Similar to previous.

Deleting students

1. Deleting one or more students while all the students are being shown.

   1. Prerequisites: List all the students using the list command. There are three and only three students in the student list.
   2. Test case: delete 1
      Expected: First student is deleted from the list. Details of the deleted student shown in the status message.
   3. Test case: delete 01
      Expected: Similar to previous.
   4. Test case: delete 1 2
      Expected: First and second students are deleted from the list. Details of the deleted students shown in the status message.
   5. Test case: delete all
      Expected: All three students are deleted from the list. Details of the deleted students shown in the status message.
   6. Test case: delete 0
      Expected: No student is deleted. Error details shown in the status message.
   7. Test case: delete 0 1 2
      Expected: Similar to previous.
   8. Other incorrect delete commands to try: delete, delete hello world, delete all all, delete 5, delete 1 2 all, delete -1
      Expected: Similar to previous.

Finding students

1. Finding a students or multiple students.

   1. Prerequisites: 2 students named James Doe and Jane Doe in the list.
   2. Test case: find James
      Expected: Shows the information of James Doe.
   3. Test case: find Jane
      Expected: Shows the information of Jane Doe.
   4. Test case: find jane
      Expected: Same as previous.
   5. Test case: find Ja
      Expected: Shows nothing because there is no partial match feature.
   6. Test case: find Doe
      Expected: Shows both James Doe and Jane Doe.
   7. Test case: find Janice
      Expected: Shows nothing because Janice is not in the list.
   8. Test case: find
      Expected: Error details shown in the status message that the command format is invalid as a keyword is required.

Adding a class

1. Adding a class.

   1. Test case: addClass 4E1 where 4E1 is the name of the class to be added into list.
      Expected: Class 4E1 is added into the list.
   2. Test case: addClass 4E1 where 4E1 is the name of the class that is already added in the list.
      Expected: No class is added. Error details shown in the status message that the class already exist in the TeachBook.
   3. Test case: addClass
      Expected: No class is added. Error details shown in the status message that the command format is invalid as class name is compulsory.

Deleting a class

1. Deleting a class.

   1. Prerequisites: Multiple classes in the list.
   2. Test case: deleteClass 4E1 where 4E1 is in the list.
      Expected: Class 4E1 is deleted from the list. Details of the deleted class shown in the status message.
   3. Test case: deleteClass 4E1 where 4E1 is not in the list.
      Expected: No class is deleted. Error details shown in the status message.
   4. Test case: deleteClass
      Expected: Similar to previous.

Editing name of the class

1. Editing the name of the currently selected class.

   1. Prerequisites: A class, other than 4E1, has to be selected using the select command.
   2. Test case: editClass 4E1
      Expected: Name of the currently selected class will change to 4E1. No changes will be made to existing students in the class.
   3. Test case: editClass 4E1 followed by editClass 4E1
      Expected: Error details are shown in the status message that the class already exists in the TeachBook.
   4. Test case: editClass
      Expected: Error details are shown in the status message that the CLASS_NAME parameter is missing.

Selecting a class

1. Selecting a class.

   1. Prerequisites: There is a class named A in the TeachBook. There is no class named M in the TeachBook.
   2. Test case: select A when class A is not selected.
      Expected: Class named A is highlighted in class list panel. Student list of class A is shown in student list panel.
   3. Test case: select A when class A is already selected.
      Expected: Nothing changes in class list panel and student list panel. Error details shown in the status message.
   4. Test case: select M
      Expected: Similar to previous.
   5. Test case: select
      Expected: Similar to previous.

Setting a grading system in TeachBook

1. Setting a grading system in TeachBook when there is no grading system present.

   1. Prerequisites: There has to be no existing grading system present in TeachBook.
   2. Test case: setGrade A>B>C>D>E
      Expected: Grading system is set for TeachBook in descending order from the highest grade A to the lowest grade E.
   3. Test case: setGrade A
      Expected: Grading system is set for TeachBook with a single grade A
   4. Test case: setGrade
      Expected: Error details are shown in the status message that the grade parameter is missing.

2. Setting a grading system in TeachBook when there is an existing grading system.

   1. Prerequisites: There is an existing grading system in TeachBook.
   2. Test case: setGrade A>B>C>D>E
      Expected: Error details are shown in the status message that there is already an existing grading system.
   3. Test case: setGrade
      Expected: Error details are shown in the status message that the grade parameter is missing.

Resetting a grading system in TeachBook

1. Resetting a grading system in TeachBook when there is an existing grading system.

   1. Prerequisites: There is an existing grading system in TeachBook
   2. Test case: resetGrade
      Expected: Message indicating successful resetting of grade is shown.

2. Resetting a grading system in TeachBook when there is no grading system present.

   1. Prerequisites: There is no grading system present in TeachBook.
   2. Test case: resetGrade
      Expected: Error details are shown in the status message that there is no grading system to reset.

Grading a student

Prerequisites: At least two students present in the student list.

1. Giving grades to students when there is an existing grading system.

   1. Prerequisites: There is an existing grading system in TeachBook with grades A>B>C>D>E
   2. Test case: grade 1 g/A
      Expected: First student in the list is graded with an A.
   3. Test case: grade 1 g/F
      Expected: Error details are shown in the status message that the given grade is invalid.

2. Giving grades to students when there is no grading system present.

   1. Prerequisites: There is no grading system present in TeachBook.
   2. Test case: grade 2 g/C
      Expected: Error details are shown in the status message that a grading system has to be set before grading students.

Sorting students

Prerequisites: At least two students present in the student list.

1. Sorting students according to grade when there is an existing grading system in TeachBook.

   1. Prerequisites: There is an existing grading system in TeachBook.
   2. Test case: sort grade
      Expected: Students are sorted according to their grades in descending order as specified by the grading system.

2. Sorting students according to grade when there is no grading system present in TeachBook.

   1. Prerequisites: There is no grading system present in TeachBook.
   2. Test case: sort grade
      Expected: Error details are shown in the status message that a grading system has to be set before sorting according to grade.

3. Sorting students according to name.

   1. Test case: sort name
      Expected: Students are sorted according to their name.

Marking students as present

1. Marking students as present from list of students.

   1. Prerequisites: At least three students in the list.
   2. Test case: mark 1
      Expected: First student from the list is marked as present. Details of the marked student shown in the status message.
   3. Test case: mark 1 2 3
      Expected: First, second and third students from the list are marked as present. Details of the marked students shown in the status message.
   4. Test case: mark 2 1 3
      Expected: Similar to previous.
   5. Test case: mark 0
      Expected: No student is marked. Error details shown in the status message.
   6. Other incorrect mark commands to try: mark, mark random, mark x, mark 1 2 x, ... (where x is non-positive or larger than the list size)
      Expected: Similar to previous.

Marking students as absent

1. Marking students as absent from list of students.

   1. Prerequisites: At least three students in the list.
   2. Test case: unmark 1
      Expected: First student from the list is marked as absent. Details of the marked student shown in the status message.
   3. Test case: unmark 1 2 3
      Expected: First, second and third students from the list are marked as absent. Details of the marked students shown in the status message.
   4. Test case: unmark 2 1 3
      Expected: Similar to previous.
   5. Test case: unmark 0
      Expected: No student is unmarked. Error details shown in the status message.
   6. Other incorrect unmark commands to try: unmark, unmark random, unmark x, unmark 1 2 x, ... (where x is non-positive or larger than the list size)
      Expected: Similar to previous.

Printing a list of students

1. Printing the list of students in a class.

   1. Prerequisites: At least two student in the class, device has Excel/can view excel folder and has Downloads folder.
   2. Test case: print
      Expected: Excel file in downloads folder with a column “Name” with the student’s names.
   3. Test case: print c/address
      Expected: Excel file in downloads folder with a column “Name” with the student’s names and a column “Address” with the student’s address.
   4. Test case: print c/signature
      Expected: Excel file in downloads folder with a column “Name” with the student’s names and a column “signature” that is empty.
   5. Test case: print c/ c/address
      Expected: Excel file in downloads folder with a column “Name” with the student’s names and a column “Address” with the student’s address, both columns should be separated by an empty column.
   6. Test case: print c/c/address
      Expected: Excel file in downloads folder with a column “Name” with the student’s names and a column “c/address” that is empty.
   7. Other incorrect print commands to try: print t/, print a/ (i.e. print with any invalid prefix after)
      Expected: Error to be thrown.

Undoing Commands

1. Undoing a recent command.

   1. Prerequisites: Start with a newly opened TeachBook with no commands to undo.
   2. Test case: undo
      Expected: Error stating no states to undo.
   3. Test case: addClass A followed by undo
      Expected: Class A is added, then gets removed after undo is executed.
   4. Test case: list all followed by undo
      Expected: All students will be displayed, after undo is executed, original list when TeachBook is first opened is displayed.
   5. Test case: Multiple list followed by undo
      Expected: Similar to previous.
   6. Test case: edit first person name without changing anything, followed by undo
      Expected: Error stating no states to undo.

Redoing Commands

1. Redoing a recent undo command.

   1. Prerequisites: Start with a newly opened TeachBook with no commands to redo.
   2. Test case: redo
      Expected: Error stating no states to redo.
   3. Test case: addClass A followed by undo followed by redo
      Expected: Class A is added, then gets removed after undo is executed, redo will bring back class A.
   4. Test case: list all followed by undo then redo
      Expected: All students will be displayed, after undo and redo is executed, there should be no change in display.
   5. Test case: Multiple list followed by undo then redo
      Expected: Similar to previous.
   6. Test case: edit first person name without changing anything, followed with undo, followed with redo
      Expected: Error stating no states to redo.
   7. Test case: addClass A followed by undo followed by addClass B followed by redo
      Expected: Class B is added and error stating no states to redo.
